| Type |
HML-ISO 35-5-C-W-F01-A01 |
| Material |
Polyamide, fibre reinforced |
| Material globe/diffuser |
Polycarbonate |
| Colour |
Black |
| Wattage |
30 W |
| Voltage |
24 V / 12V |
| Type of Voltage |
DC |
| Protection class |
IP56 |
| Operational areas |
Outdoor, Emergency |
| Temp. range min |
-25 °C |
| Temp. range max |
55 °C |
| Lamp |
Halogen lamp |
| Reflector |
Glass |
| Lamp |
included |
| Lamp shape |
reflector |
| Average lamp durability |
4000 h |
| Globe colour |
Clear |
| Light performance |
immediately |
| Lampholder |
GY6,35 |
| Number of lampholder |
1 ST |
| Material cable gland |
Polyamide |
| Power cable |
H07RN-F 2x1,5mm² |
| Ø cable diameter min |
6 mm |
| Ø cable diameter max |
13 mm |
| External dimensions LxWxH |
160 x 244 x 215 mm |
| Approval |
DNV |
| Weight |
12,5 kg |
| Equipment |
filter: red, green, blue, incl. PowerPack + Charger |
| Advice |

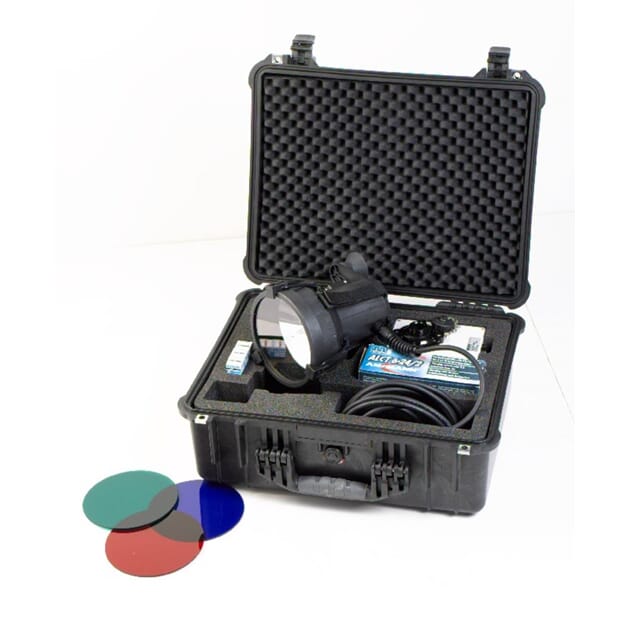

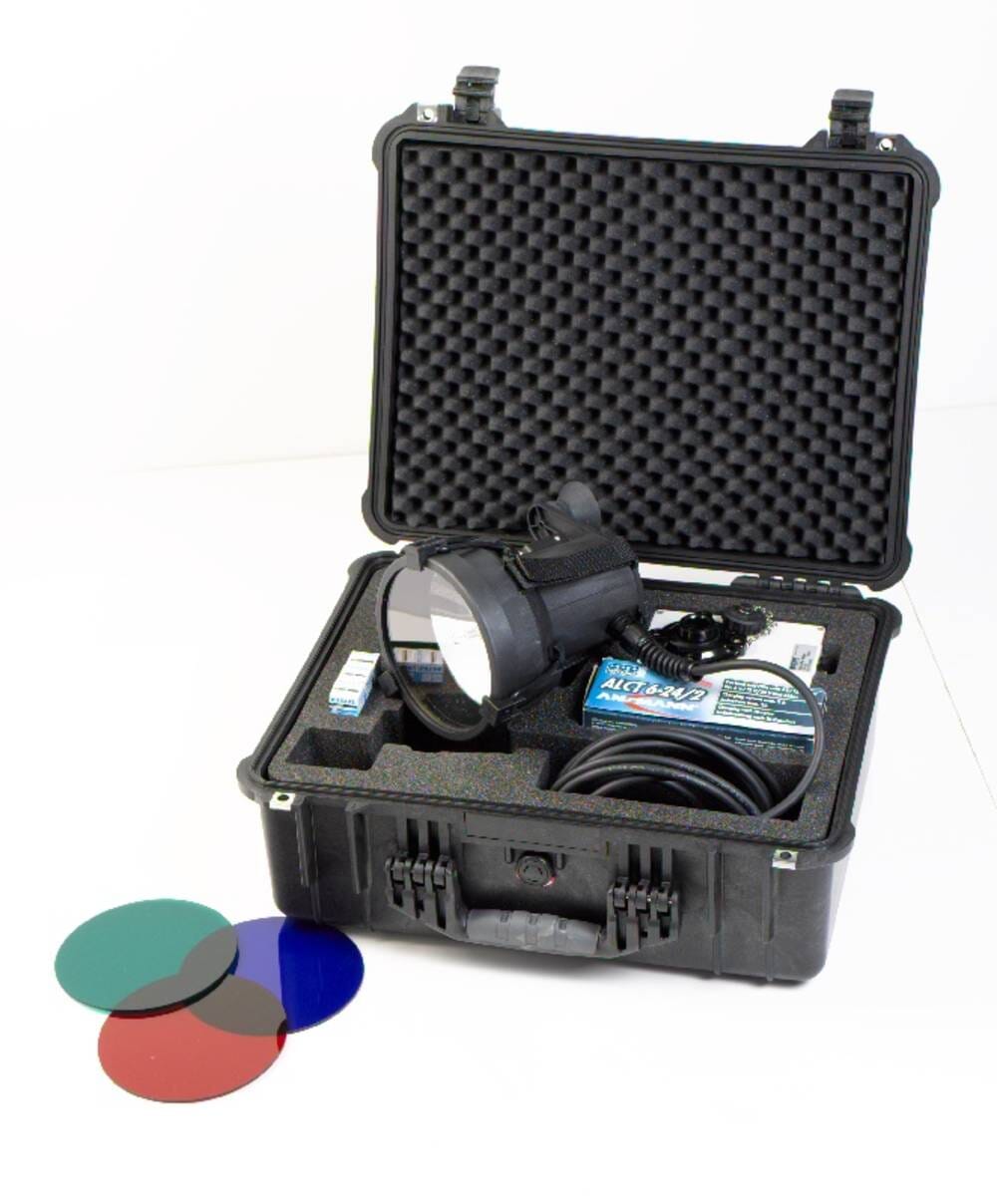

Carrying case and filter discs |
Remarks:
- Signal range: 3.400m during the day, 21.400m at night
Equipment:
- Toughened front glass
- Rubber sealing
- Quick fastening rubber
- Sighting device
- Micro switch for left- and right hander
- mounted halogen lamp + 3 spare lamps
- Connection cable 5m
- SOS function
- Permanent light function
- Cargo and storage in watertight, IP 67 (1m |
